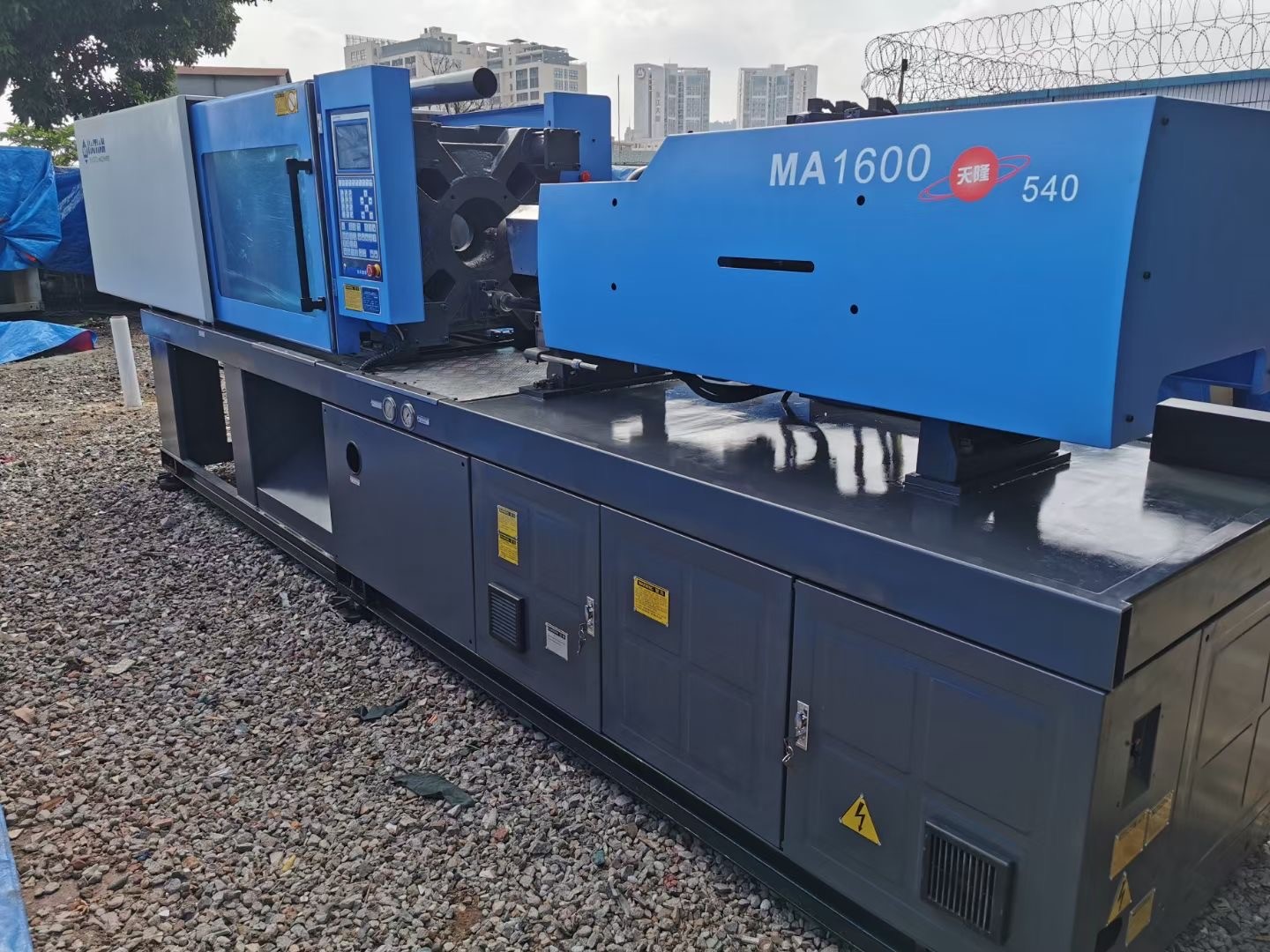

Mano dell'haitiano MA1600 160 Ton Injection Moulding Machine Second con il servomotore

Mano dell'haitiano MA1600 160 Ton Injection Moulding Machine Second con il servomotore

  • Mano dell'haitiano MA1600 160 Ton Injection Moulding Machine Second con il servomotore
  • Mano dell'haitiano MA1600 160 Ton Injection Moulding Machine Second con il servomotore
  • Mano dell'haitiano MA1600 160 Ton Injection Moulding Machine Second con il servomotore
  • Mano dell'haitiano MA1600 160 Ton Injection Moulding Machine Second con il servomotore
Mano dell'haitiano MA1600 160 Ton Injection Moulding Machine Second con il servomotore
Dettagli:
Luogo di origine: La Cina
Marca: haitian
Certificazione: CE
Numero di modello: 160ton
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1 insieme
Prezzo: USD9000/set-USD15000/set
Imballaggi particolari: Imballaggio del film plastico e contenitore allora andato d'accordo
Tempi di consegna: 5-7 giorni lavorativi
Termini di pagamento: T/T, Western Union
Capacità di alimentazione: 100set al mese
Contatto
Descrizione di prodotto dettagliata
Nome di prodotto: Macchina a iniezione di plastica dell'haitiano MA1600 Circostanza: Usato
Diametro della vite: 45mm Peso dell'iniezione: 291g
Dimensione (l*w*h): 5.07*1.35*1.99M Peso: 5.3T
Garanzia: un anno Servizio di assistenza al cliente fornito: Video supporto tecnico, pezzi di ricambio liberi, supporto online
Evidenziare:

Haitiano MA1600 160 Ton Injection Moulding Machine

,

160 Ton Injection Moulding Machine

,

Macchina a iniezione della seconda mano

Haitian 160Ton Plastic Injection Moulding Machine With Servo Motor Haitian Ma1600 Used Injection Machine



Specification



Product features:

1. Enhanced clamping mechanism to meet requirements for efficient production.

2. Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3. Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4. Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

5. Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6. Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication, provide more professional lubrication protection and extend mechanical life.

7. New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.



Modular design

Modular application, easy maintenance



Frictionless tie rod design

Zero friction between pull rod and moving template, longer service life, diagonal layout of the two fast cylinder greatly improve the speed of mold opening and closing



Maintenance is convenient

Inorganic dumplings, only maintenance cylinder seal ring



Optimize the layout of the firing station

The new optimized design of the shooting table, the support of the shooting table adopts high-precision linear guide rail, which greatly reduces the mechanical loss and improves the performance of the whole machine



 Machine parameter

Brand Name Haitian
Model Number MA1600
Year 2015
Style Horizontal
Machine Type Hydraulic
Key Selling Points Energy saving
Plastic material PP, PC, ABS, PET, PVC, HDPE, ABS/PP and so on
Applicable Industries Manufacturing Plant
Screw diameter 45 mm
Theoretical Shot Volume 320 cm³
Injection Rate 148 g/s
Injection Weight 291 g
Distance between Tie Bars 470*470mm
Ejector Stroke 140 mm
Ejector Force  33 kN
Clamping Force 1600 kN
Pump Motor Power 9.75 kW
Weight 5.3T
Size 5.07*1.35*1.99M
Warranty 1 Year
After-sales Service Provided Video technical support, Free spare parts, Online support
Place of Origin China



Our Service
1. All the products have one year guarantee.
2. Providing professional installation instructions and video of troubleshoot.
3. We supply after sales service for 24 hours, 6 days per week. Customer can contact us any time.



Machine Details



Mano dell'haitiano MA1600 160 Ton Injection Moulding Machine Second con il servomotore 0

Mano dell'haitiano MA1600 160 Ton Injection Moulding Machine Second con il servomotore 1

Mano dell'haitiano MA1600 160 Ton Injection Moulding Machine Second con il servomotore 2

Mano dell'haitiano MA1600 160 Ton Injection Moulding Machine Second con il servomotore 3





Machine Shipping



Mano dell'haitiano MA1600 160 Ton Injection Moulding Machine Second con il servomotore 4

Mano dell'haitiano MA1600 160 Ton Injection Moulding Machine Second con il servomotore 5



Company Profile

Dongguan Jingzhan Machine Equipment Co., Ltd. is located in Dongguan City, Guangdong Province, China.

Jingzhan machine company has developed into a comprehensive company with multi-national operations.

The Company now has mainly covered several industries, namely plastic injection molding machine, CNC working center, milling machine, lathe machine, sewing machine and machine parts etc
In 2020, the Company has generated total sales revenue exceeding 5 Million US dollars, with products sold to customers over 30 countries and regions.Our
differentiated machine concepts not only meet the specific requirements of every important customer, but also generate further competitive advantages for our customers.

We provide full-service to our customers after our products are sold and ensure our customers receive prompt feedback and solutions.

We swear that every machine you''ll receive from us is in good condition.Looking forward to our long-term cooperation.



Mano dell'haitiano MA1600 160 Ton Injection Moulding Machine Second con il servomotore 6



FAQ

1.Why choose us?

-We have our own factory and multiple warehouses, and each machine will be inspected by engineers before shipment.

2.How about the price of the machine?

-The price of each model is different, it depends on the fineness of the machine, please consult us and give you a discount.

3.Is the machine working well?

-We service the machines to make it in good running condition. The machines can be sold soon.

4.What accessories does the machine include?

- A complete set of machines includes machine head, table, motor, stand. Depend on your requirement. Regarding the accessories, we have new accessories.

5.Can I buy one or two sets?

-Of course, our MOQ is 1 set. You can check our quality first. If you are satisfied, you can consider our long-term cooperation
